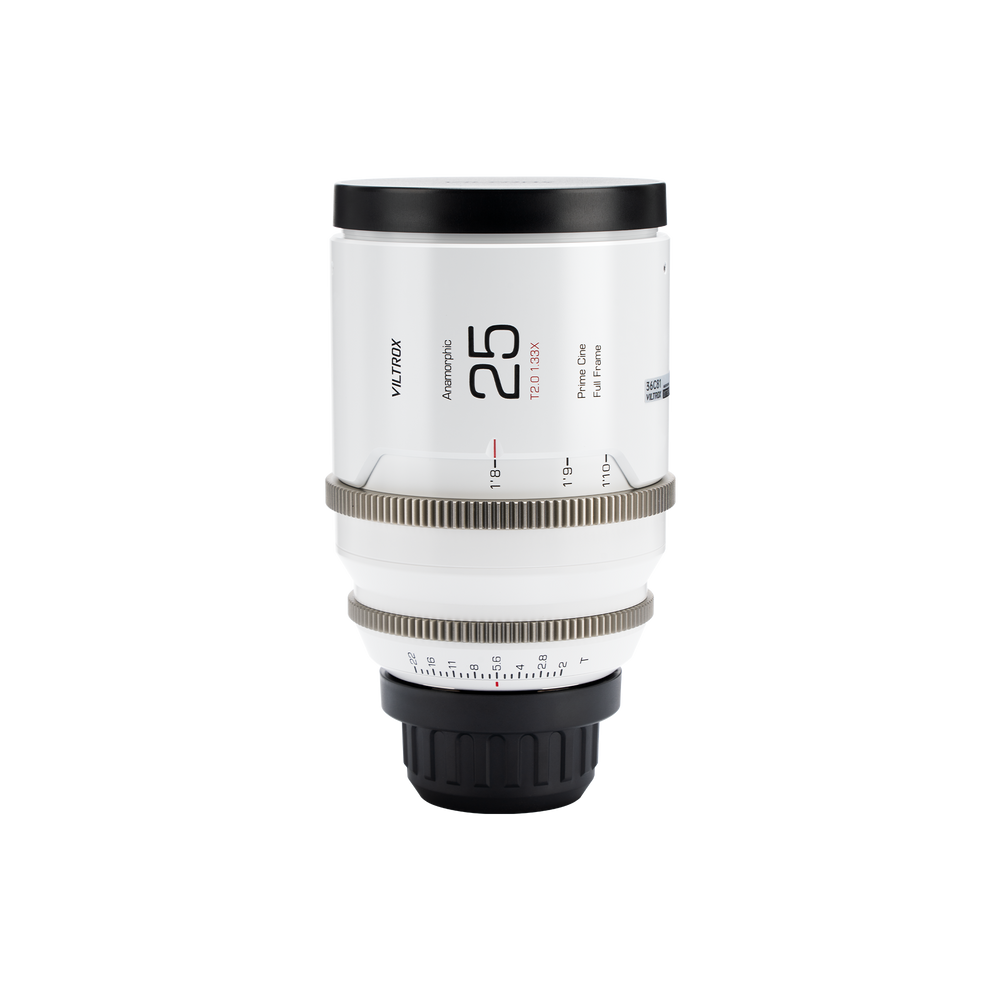

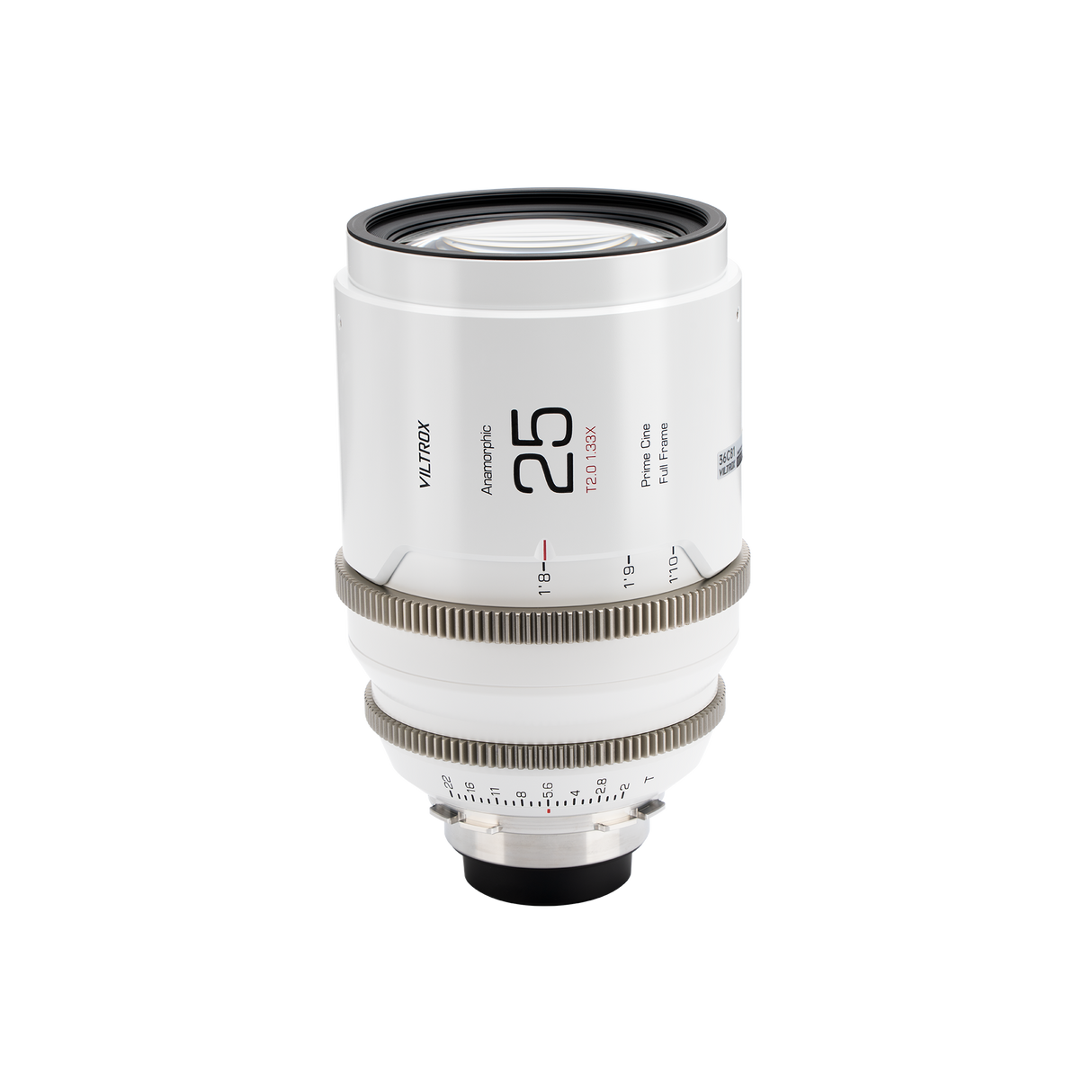

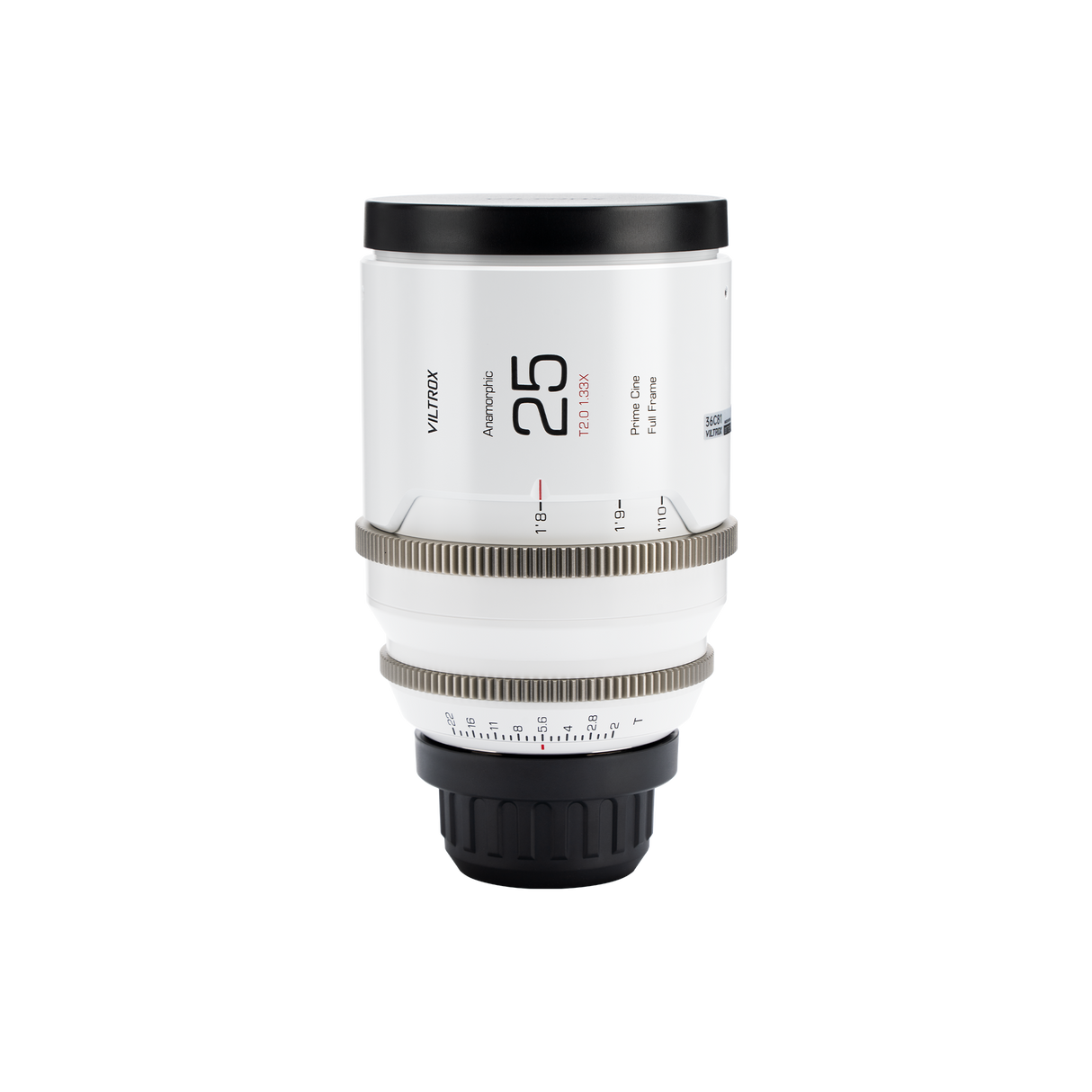

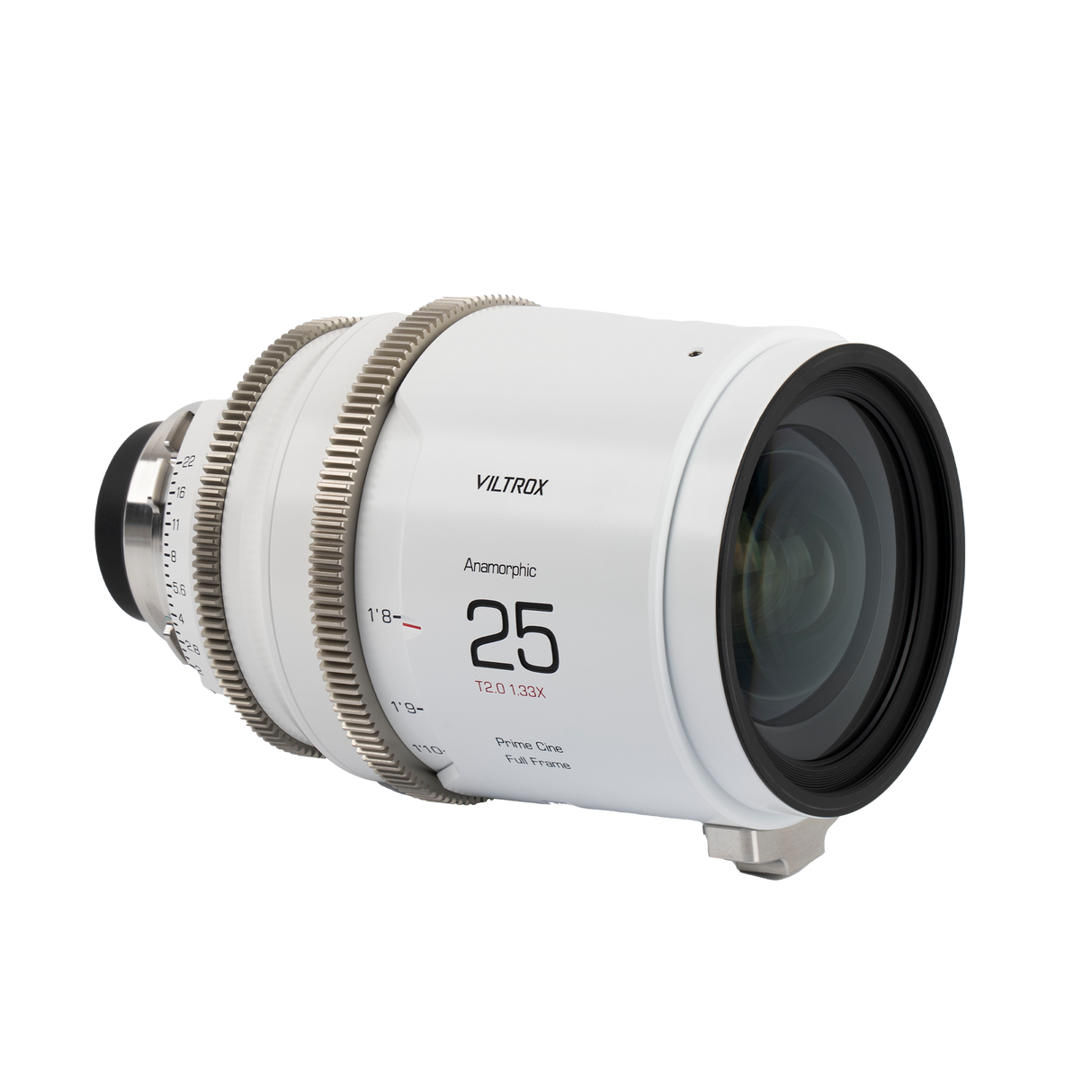

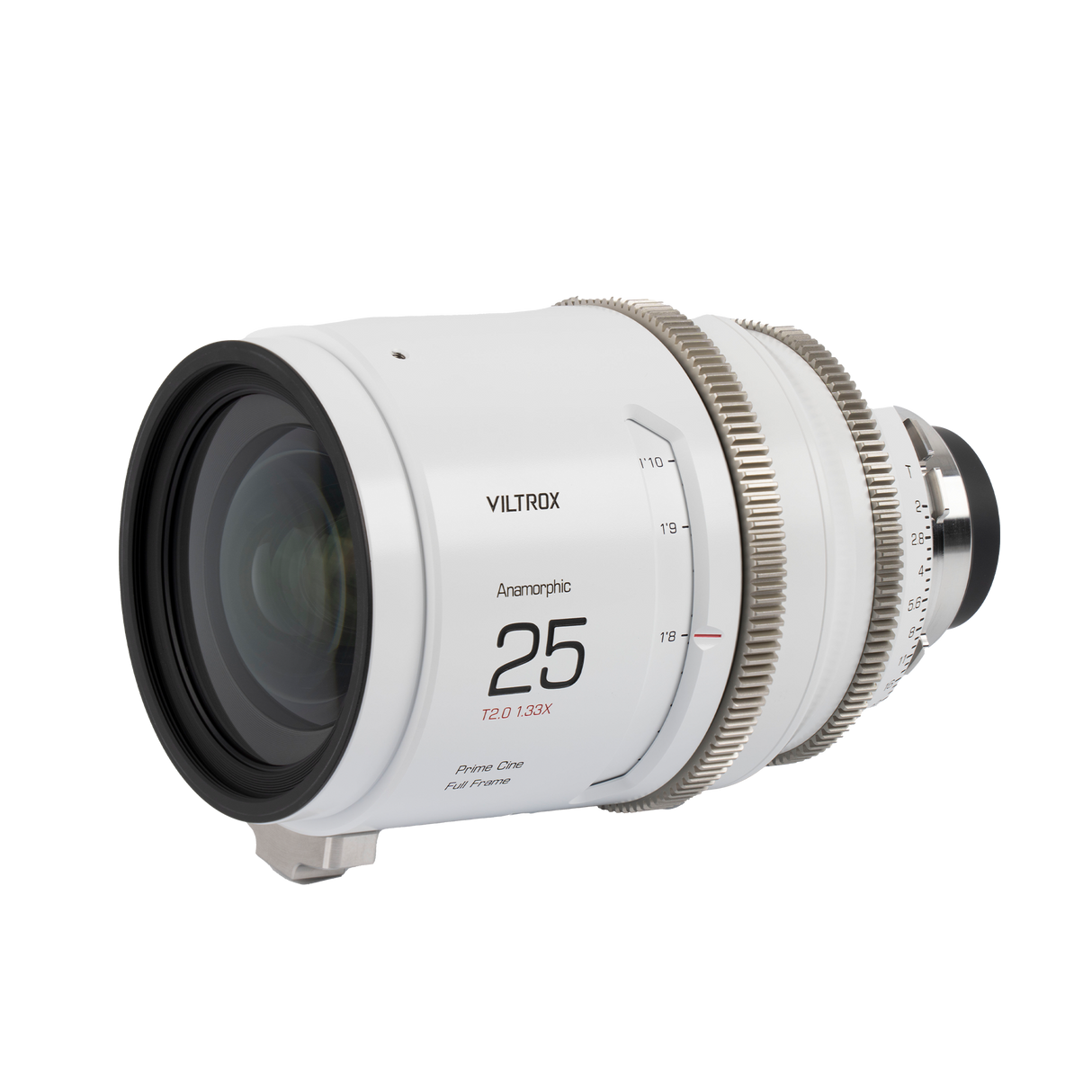

Anamorphic Cine lens 25 mm T/2.0 1.33x with PL-Mount
Discover the technical masterpieces of our anamorphic Cine lens 25 mm T/2.0 1.33x with PL-Mount, developed to meet the requirements of modern film productions. This lens provides an impressive picture and supports filmmakers in implementing their artistic vision with the highest image quality.
Special look for Professional video cameras
Our anamorphotic cine lens is equipped with a special look that specially for the requirements of Professional video cameras was developed. It ensures excellent image quality and offers unique, cinematic effects that raise your recordings to a new level.
With Compression factor 1.33x Usable to almost every camera
The lens is characterized by a Compression factor of 1.33x From that enables the characteristic anamorphotic look to produce on practically every camera. This offers you the flexibility to use this lens with a variety of camera systems and still achieve consistent and impressive results.
Large light intensity with a maximum aperture of T 2.0
The large maximum aperture of T 2.0 Allows you to film even under difficult lighting conditions. This feature is ideal for scenes with low lighting or for creating a deep and dramatic bokehs, which means that your creative possibilities are expanded.
With standardized M0.8 Gear connection
The lens comes with a standardized M0.8 gear connectionthat enables precise and smooth operation of the focus and aperture control. This is particularly important for the integration in Professional film production environmentswhere accuracy and reliability are at the top.
18 lens groups with 22 glasses
With a total of 18 lens groups and 22 high -quality glasses This lens guarantees an extraordinary optical performance. The complex lens arrangement minimizes image defects and ensures razor -sharp, clear recordings With a striking anamorphological character.
horizontal Blue lens effects (flares)
The production Horizontal blue lens effects, also called Flares, In our anamorphic cine lenses there is a direct consequence of your anamorphological lens construction. These lenses use a compression of the image, mainly in the horizontal axis, which causes luminous faithfulness and fragments in a characteristic distorted, elongated form. The optical materials and the coatings of the lenses are designed in such a way that they reflect and break certain wavelengths of light - primarily in the blue spectrum. This technical interpretation is crucial for the production of visually appealing and stylistically significant Flares, which are estimated in many film genres.
Wider field of vision thanks to Cine lenses
The Wider field of vision Our anamorphic cine lenses are made possible by the specific arrangement and design of the lens elements. Anamorphotic lenses use an asymmetrical lens arrangement that extends the light in the horizontal dimension more than in the vertical. This optical distortion enables a wider image to be projected onto the same sensor area without being adapted. Technically speaking, this increases this Horizontal field of vision without affecting the vertical image resolution. This property is particularly valuable in cinematography because it enables expansive scenes without panoramic rides or the need to change the camera position.
Technical data
|
Light intensity: |
T/2.0 |
| Near setting limit: |
0.50 m |
|
Compression factor: |
1.33x |
|
Autofocus: |
No |
| Focusing ring: |
Standard M0.8 gearwheel |
|
Connection: |
PL-Mount |
|
Full format: |
Yes |
|
Filter thread: |
95 mm |
|
EXIF data: |
No |
|
Groups/lenses: |
22/18 |
|
Aperture lamellae: |
8 |
Smallest aperture:
|
T/22 |
| Dimensions (diameter x length): |
10.2 x 15.1 cm |
Weight
|
2.02 kg |
scope of delivery
- 1x Viltrox Anamorphic Cine Lens 25 mm
- 1x tripod support (unscrewable)
- 1x Torx screwdriver
- 1x lens covers
- 1x lens transport case case
- 1x operating instructions
